Unihedron Sky Quality Meter-LE+H+POE (官方授權臺灣總代理)
-
SQM-LE unit
-
International Power adapter
-
USB flash drive containing the users manual, operation software (UDM), and example software. This can also be found online.
-
6ft Ethernet cable (straight through for connection to hub/router)
NT$22,250 原始價格:NT$22,250。NT$17,800目前價格:NT$17,800。
運送&退貨
運送須知:
- 運送地區:
- 我們提供國內和離島(澎金馬)服務。
- 運送地區可能因商品類型和目的地而有所不同。客戶可以在結帳頁面查看可用的選項。
- 運送時間:
- 一般情況下,我們會在收到訂單後的1-5個工作日內發貨,請參考結帳頁面的估計到達時間。
- 運送費用:
- 凡購物不限金額皆享有免運費優惠。
- 運送服務提供商:
- 我們合作的運送服務提供商為新竹物流,以確保您的商品安全且準時到達。
退貨須知:
- 退貨政策:
- 我們提供在商品到貨後享七天猶豫期之權益,欲退貨之客戶請於七日內申請退貨。
- 退回之商品必須是全新(無拆封)狀態,包括主要商品、使用手冊、週邊零件及發票等,連同原來的包裝一併寄回。
- 退貨流程:
- 欲辦理退換貨者請 E-mail 至客服信箱(madeline@nick.com.tw)或來電申請,並提供以下資訊:姓名、聯絡電話、E-mail、訂單號碼、退換貨原因,後續將會有專人為您處理。
- 退款方式:
- 退款將在完成商品回收及驗收後數個工作日內進行退款流程。
- 退貨運費:
- 若商品無問題(除商品有瑕疵或收到錯誤商品外)欲退貨者,您必須自行負擔將商品寄回之運費。
- 售後服務:
- 如果客戶在收到商品後遇到任何問題,請隨時聯繫我們的客服團隊。我們將竭誠為您提供協助。
-

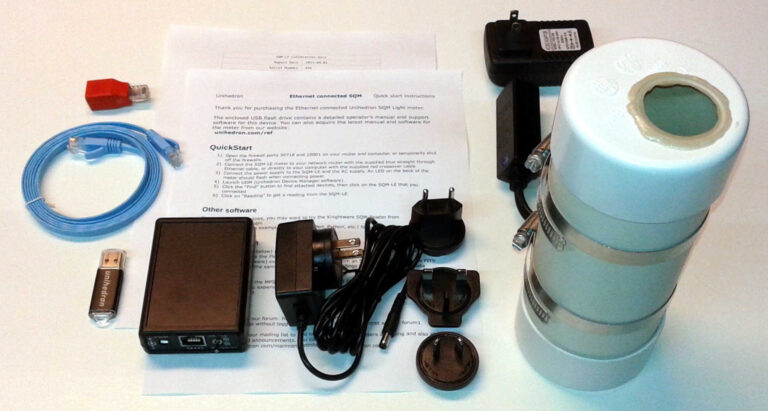

SQM-LE unit
-
International Power adapter
-
USB flash drive containing the users manual, operation software (UDM), and example software. This can also be found online.
-
6ft Ethernet cable (straight through for connection to hub/router)
-
Ethernet crossover cable or adapter (for connection directly to PC)
-
Calibration sheet indicates unit MAC address, and calibration values
-
Weatherproof housing
-
Power over Ethernet kit with North American plug (may look different than photo)

-
An ethernet-enabled SQM model for night-time sky brightness monitoring! An affordable meter for continual, connected measuring of sky brightness for astronomers! The "Sky Quality Meter - LE" measures the brightness of the night sky in magnitudes per square arcsecond. Designed by Dr. Doug Welch and Anthony Tekatch Uses:
-
Find out how good the night or site REALLY is.
-
Compare the sky brightness at different sites quantitatively.
-
Document the evolution of light pollution in your area.
-
Set planetarium dome illumination to mimic the skies people are likely to experience elsewhere in the city.
-
Monitor sky brightness through the night, night-to-night, and year-to-year.
-
Determine which nights show the greatest promise for finding the 'faintest fuzzies'!
-
Calibrate the effect of sky brightness on qualitative measures such as the Bortle Scale.
-
Investigate how sky brightness correlates with the solar cycle and month-to-month sunspot activity.
-
Help provide local ground truth for future sky brightness prediction with the Clear Sky Clock.
-
CCD users can make a correlation between the SQM reading and when the background reaches some ADC level.
Features:
-
Sky brightness reported in visual magnitudes per square arcsecond.
-
Infrared blocking filter restricts measurement to visual bandpass.
-
Sensor temperature, model number, and serial number are provided.
-
Precision readings at even the darkest sites.
-
Field-upgradeable firmware
-
Open protocol document
Specifications: Ethernet connectivity Included applications for reading data in Java, C, Perl, Python. The Half Width Half Maximum (HWHM) of the angular sensitivity is ~10°. The Full Width Half Maximum (FWHM) is then ~20°. The sensitivity to a point source ~19° off-axis is a factor of 10 lower than on-axis. A point source ~20° and ~40° off-axis would register 3.0 and 5.0 magnitudes fainter, respectively. Annotated FOV spec. Comparison chart.
-
Operates from 5-6VDC adapter (included).
-
Size 3.6 x 2.6 x 1.1 in.
-
Maximum light sampling time: 80 seconds.
-
Minimum light sampling time: 1 seconds.
-
Specifications are subject to change without notice.
