SBIG Aluma CCD8300 冷卻天文相機 (預訂款) (官方授權臺灣總代理)

High-performance CCD imaging sensors
Light weight, compact design
Centered optical axis for optimum instrument balance

詢價


NT$999,999

運送須知:

  1. 運送地區:
    • 我們提供國內和離島(澎金馬)服務。
    • 運送地區可能因商品類型和目的地而有所不同。客戶可以在結帳頁面查看可用的選項。
  2. 運送時間:
    • 一般情況下,我們會在收到訂單後的1-5個工作日內發貨,請參考結帳頁面的估計到達時間。
  3. 運送費用:
    • 凡購物不限金額皆享有免運費優惠。
  4. 運送服務提供商:
    • 我們合作的運送服務提供商為新竹物流,以確保您的商品安全且準時到達。


退貨須知:

  1. 退貨政策:
    • 我們提供在商品到貨後享七天猶豫期之權益,欲退貨之客戶請於七日內申請退貨。
    • 退回之商品必須是全新(無拆封)狀態,包括主要商品、使用手冊、週邊零件及發票等,連同原來的包裝一併寄回。
  2. 退貨流程:
    • 欲辦理退換貨者請 E-mail 至客服信箱(madeline@nick.com.tw)或來電申請,並提供以下資訊:姓名、聯絡電話、E-mail、訂單號碼、退換貨原因,後續將會有專人為您處理。
  3. 退款方式:
    • 退款將在完成商品回收及驗收後數個工作日內進行退款流程。
  4. 退貨運費:
    • 若商品無問題(除商品有瑕疵或收到錯誤商品外)欲退貨者,您必須自行負擔將商品寄回之運費。
  5. 售後服務:
    • 如果客戶在收到商品後遇到任何問題,請隨時聯繫我們的客服團隊。我們將竭誠為您提供協助。
Product Description

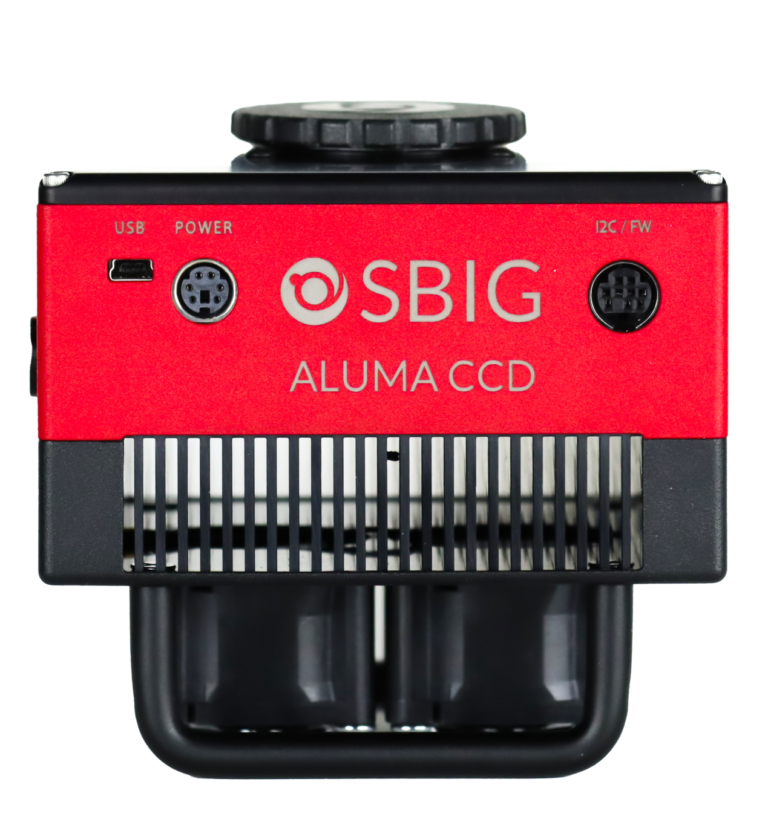

Aluma Features include:
  • High-performance CCD imaging sensors
  • Light weight, compact design
  • Centered optical axis for optimum instrument balance
  • Ultra reliable even-illumination (photometric) mechanical shutter
  • USB 2.0 interface
  • Full frame image buffering eliminates readout artifacts
  • 2-Stage TE cooling with typical -50C from ambient
  • Twin variable speed fans with SmartCoolingTM technology
  • High accuracy temperature regulation
  • Built-in RBI Pre-flash (full frame front-illuminated sensors only)
  • External TTL trigger inputs and output
  • Included 110V / 220V power supply and optional 12VDC operation
  • User-rechargeable desiccant plug
  • Built-in 1/4-20 tripod mount
  • Support for high precision 8-position filter wheels
  • Bulletproof firmware update capability – virtually impossible to “brick”
Software Included

All Aluma CCD models ship with MaxIm LT for Windows – a special version of MaxIm DL specific to our cameras. Aluma also supports third-party applications through ASCOM and native drivers.

Compact and Lightweight Design

Aluma cameras measure just 4.25″ x 4.25″ x 4.0″ with handles (3.5″ without handles) and weigh just 2.2 lbs (1 kg).

High Performance KAF-8300 Image Sensor

The Aluma 8300 uses the popular 8 megapixel ON Semi (formerly Kodak) KAF-8300-AXC sensor. The sensor has 3448 x 2574 pixels at 5.4 microns square, for a 17.96 mm x 13.52 mm chip size.

This is a high sensitivity full frame CCD sensor with low dark current and low read noise.  Combining this high performance sensor with Aluma’s high cooling performance and low readout noise results in exceptionally clean images.

This sensor includes microlens technology that concentrates light on the sensitive area of each pixel.  The CCD’s sensitivity peaks in the center of the visible spectrum at 550 nm, and maintains high sensitivity throughout the visible spectrum.
