SBIG Aluma AC4040 冷卻天文相機 (預訂款) (官方授權臺灣總代理)

The SBIG Aluma AC Series represents the state-of-the-art in Advanced Scientific CMOS cameras for astronomical imaging systems.

詢價

NT$999,999

運送須知:

  1. 運送地區:
    • 我們提供國內和離島(澎金馬)服務。
    • 運送地區可能因商品類型和目的地而有所不同。客戶可以在結帳頁面查看可用的選項。
  2. 運送時間:
    • 一般情況下,我們會在收到訂單後的1-5個工作日內發貨,請參考結帳頁面的估計到達時間。
  3. 運送費用:
    • 凡購物不限金額皆享有免運費優惠。
  4. 運送服務提供商:
    • 我們合作的運送服務提供商為新竹物流,以確保您的商品安全且準時到達。


退貨須知:

  1. 退貨政策:
    • 我們提供在商品到貨後享七天猶豫期之權益,欲退貨之客戶請於七日內申請退貨。
    • 退回之商品必須是全新(無拆封)狀態,包括主要商品、使用手冊、週邊零件及發票等,連同原來的包裝一併寄回。
  2. 退貨流程:
    • 欲辦理退換貨者請 E-mail 至客服信箱(madeline@nick.com.tw)或來電申請,並提供以下資訊:姓名、聯絡電話、E-mail、訂單號碼、退換貨原因,後續將會有專人為您處理。
  3. 退款方式:
    • 退款將在完成商品回收及驗收後數個工作日內進行退款流程。
  4. 退貨運費:
    • 若商品無問題(除商品有瑕疵或收到錯誤商品外)欲退貨者,您必須自行負擔將商品寄回之運費。
  5. 售後服務:
    • 如果客戶在收到商品後遇到任何問題,請隨時聯繫我們的客服團隊。我們將竭誠為您提供協助。
Product Description

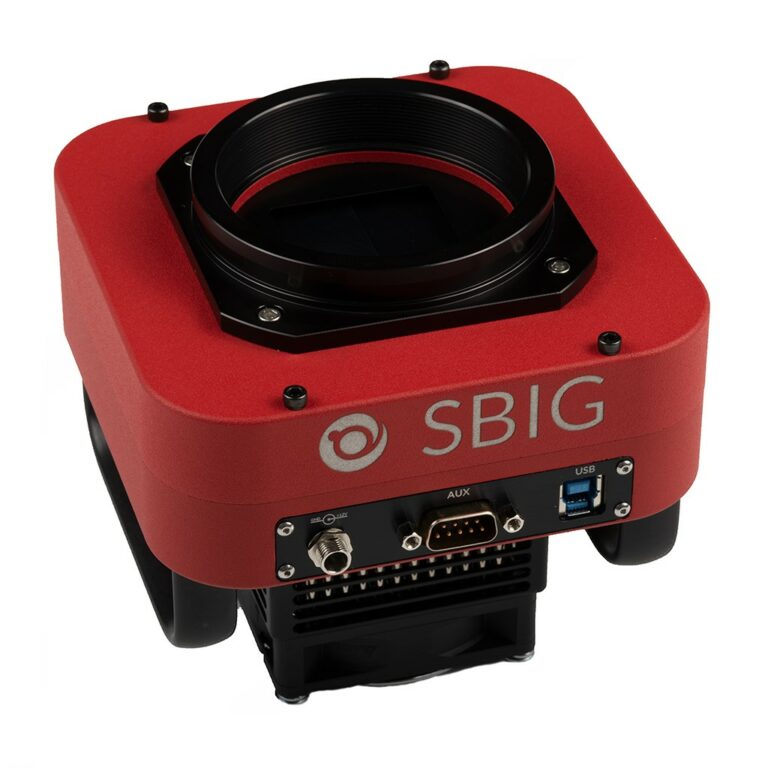

The SBIG Aluma AC Series represents the state-of-the-art in Advanced Scientific CMOS cameras for astronomical imaging systems. The camera’s advanced design permits high speed download via the USB 3.0 connection to the control computer. The Aluma AC4040 uses the Gpixel GSENSE4040 CMOS sensor with 16.8 million pixels at 9 microns. The sensor measures almost 37mm square. The Aluma AC series has powerful two stage cooling and supports optional water cooling. Aluma AC cameras can be operated directly from a 12VDC 8A power supply.

Design features include:

High Quantum Efficiency



Our previous flagship CCD camera, the STX-16803, had very good peak quantum efficiency at 60%. The new Aluma AC4040 improves on this significantly.

The new Aluma AC4040 standard Front-Side Illuminated (FSI) model has a peak Quantum Efficiency (QE) of 74%, and features a much broader peak that is almost flat through the visible spectrum – from 450 nm through to over 900 nm.  This means the overall sensitivity of the Aluma AC4040 is much higher than its CCD predecessor.

The FSI camera is available with an economical Class 2 sensor, or a premium Class 1 sensor with fewer pixel defects.

We recommend the FSI Class 1 camera for most applications, as it has the best performance tradeoff in most situations.  FSI cameras have excellent sensitivity, and have much lower dark current and higher well depth compared to BSI cameras.  In most situations this provides the best tradeoff for signal, noise, and dynamic range.
