FLI Kepler KL400FI Cooled SCMOS Camera 冷卻式天文相機 (官方授權臺灣總代理)

若欲下訂此商品，請先來信或來電確認交期，以免等候時程過長。謝謝!

The Kepler Series is a giant step forward in throughput, providing faster digitization, higher speed interfaces, and up to 35 channel readout.

詢價

NT$999,999

立即購買

運送須知：

運送地區：
- 我們提供國內和離島(澎金馬)服務。
- 運送地區可能因商品類型和目的地而有所不同。客戶可以在結帳頁面查看可用的選項。
運送時間：
- 一般情況下，我們會在收到訂單後的1-5個工作日內發貨，請參考結帳頁面的估計到達時間。
運送費用：
- 凡購物不限金額皆享有免運費優惠。
運送服務提供商：
- 我們合作的運送服務提供商為新竹物流，以確保您的商品安全且準時到達。

退貨須知：

退貨政策：
- 我們提供在商品到貨後享七天猶豫期之權益，欲退貨之客戶請於七日內申請退貨。
- 退回之商品必須是全新(無拆封)狀態，包括主要商品、使用手冊、週邊零件及發票等，連同原來的包裝一併寄回。
退貨流程：
- 欲辦理退換貨者請 E-mail 至客服信箱(madeline@nick.com.tw)或來電申請，並提供以下資訊：姓名、聯絡電話、E-mail、訂單號碼、退換貨原因，後續將會有專人為您處理。
退款方式：
- 退款將在完成商品回收及驗收後數個工作日內進行退款流程。
退貨運費：
- 若商品無問題(除商品有瑕疵或收到錯誤商品外)欲退貨者，您必須自行負擔將商品寄回之運費。
售後服務：
- 如果客戶在收到商品後遇到任何問題，請隨時聯繫我們的客服團隊。我們將竭誠為您提供協助。

加入追蹤清單

已加入追蹤清單

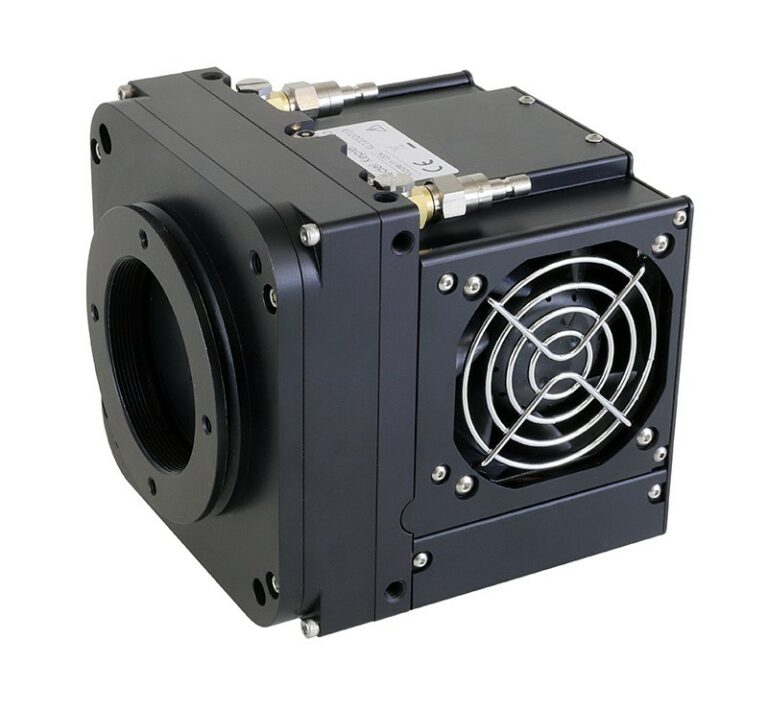

Kepler Cooled sCMOS Cameras

The Kepler Series is a giant step forward in throughput, providing faster digitization, higher speed interfaces, and up to 35 channel readout. Sensors currently supported include front and back illuminated sCMOS. Future developments will include interline transfer CCDs and EMCCDs.

```
0 (3 Gbps)
```

Optional QSFP high speed fiber interface

Optional Electromechanical Shutter for Remote Acquisition of Calibration Frames

Choice of Windows - View Transmissivity Curves

Air Cooling or Liquid Cooling (LC connectors sold separately)

```
Deep Cooling (up to 45C below ambient)
```
```
Optional Anti-Dew Technology (ADT)
```
```
LDR and HDR modes
```

Small Footprint (as small as 10.2 x 10.2 x 10.7 cm)

Reaches operating temperatures in 10 minutes

```
View Kepler Overview pdf
```

For details regarding Kepler Operational Modes and a Signal to Noise Comparison of CCDs versus CMOS, please see the bottom of this page.

Need Extremely Accurate Time Logging? See the Kepler Image Time Stamp.

Maximize Your Field of View with our New Large Format Kepler KL6060 sCMOS Camera

Available with a front-illuminated sensor or high-QE back-illuminated sensor, the Kepler KL6060 camera is capable of taking up to 19 frames per second using the optional QSFP fiber interface. This affordable camera is a game-changing solution for Space Debris Detection and Space Situational Awareness applications and is ideal for universities or dedicated amateurs who want to capture every possible photon. (Click here for the brochure)

Front Illuminated Sensors

Kepler KL400FI: 2048 x 2048, 11 micron

Kepler KL4040FI: 4096 x 4096, 9 micron

Kepler KL6060FI: 6144 x 6144, 10 micron

Back Illuminated Sensors

Kepler KL400BI: 2048 x 2048, 11 micron

Kepler KL4040BI: 4096 x 4096, 9 micron

Kepler KL6060BI: 6144 x 6144, 10 micron

Kepler DC23084 CCD Camera: 4096 x 4096, 15 micron

A Signal to Noise Ratio Comparison: PL16803 CCD vs. KL4040 sCMOS

The ProLine PL16803 has been the de facto standard for astrophotography since its release in 2006, and the Kepler KL4040 continues the tradition of excellence. Both cameras use a 4k x 4k sensor with 9 micron pixels. The difference is the ProLine uses a traditional CCD while the Kepler uses a Scientific CMOS sensor.

The table below is a comparison of the ProLine PL16803 and the Kepler KL4040 cameras, using a low flux value of 1 photon/pixel/second.

KAF-16803 vs GSense4040
Sensor	KAF-16803 CCD	GS4040 sCMOS
Average QE 400-700 nm	50.7%	69.8%
Dark Current	0.001 eps	0.15 eps
Read Noise	10 e-	3.7 e-
Throughput	1 MHz	800 MHz
Full Well Capacity	100000 e-	70000 e-
Dynamic Range	10000 : 1	18900 : 1
SNR 900 sec	19.2	22.5
SNR 5 x 180 sec	14.7	21.8
SNR 10 x 90 sec	11.9	20.9
