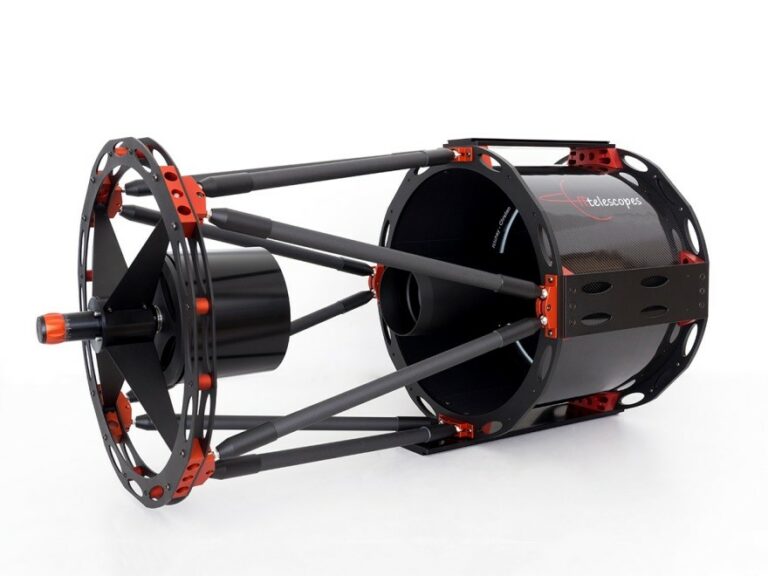

CFF Ritchey – Chretien 400mm telescope 天文望遠鏡 (預訂款)

1150 x 525 x 560 mm
(L x W x H; considers handle, dovetail & focuser added height/length)
Weight : ~35 kg

詢價

NT$999,999

運送須知:

  1. 運送地區:
    • 我們提供國內和離島(澎金馬)服務。
    • 運送地區可能因商品類型和目的地而有所不同。客戶可以在結帳頁面查看可用的選項。
  2. 運送時間:
    • 一般情況下,我們會在收到訂單後的1-5個工作日內發貨,請參考結帳頁面的估計到達時間。
  3. 運送費用:
    • 凡購物不限金額皆享有免運費優惠。
  4. 運送服務提供商:
    • 我們合作的運送服務提供商為新竹物流,以確保您的商品安全且準時到達。


退貨須知:

  1. 退貨政策:
    • 我們提供在商品到貨後享七天猶豫期之權益,欲退貨之客戶請於七日內申請退貨。
    • 退回之商品必須是全新(無拆封)狀態,包括主要商品、使用手冊、週邊零件及發票等,連同原來的包裝一併寄回。
  2. 退貨流程:
    • 欲辦理退換貨者請 E-mail 至客服信箱(madeline@nick.com.tw)或來電申請,並提供以下資訊:姓名、聯絡電話、E-mail、訂單號碼、退換貨原因,後續將會有專人為您處理。
  3. 退款方式:
    • 退款將在完成商品回收及驗收後數個工作日內進行退款流程。
  4. 退貨運費:
    • 若商品無問題(除商品有瑕疵或收到錯誤商品外)欲退貨者,您必須自行負擔將商品寄回之運費。
  5. 售後服務:
    • 如果客戶在收到商品後遇到任何問題,請隨時聯繫我們的客服團隊。我們將竭誠為您提供協助。
Availability: manufactured on request; Type: reflector

Our line of Ritchey-Chretien reflectors is designed to offer non-compromising imaging quality, by integrating everything needed in a package containing high-quality hand-figured optics, top-quality finish & mechanics.
We’re delivering the full range of substrates for these telescopes, starting with basic borosilicate glass (Supremax33), moving upwards in value/quality by using Ultra Low Expansion glass like Fused Silica/Quartz, which we highly recommend as first choice for telescopes with 350mm and above diameters, while for those of you who desire best optical quality finish coupled with the lowest mass, we might be able soon to deliver also cellular blanks.
The latter has the advantage of quickest cool down coupled with reduced weight (sensible weight differences/gains are observable in bigger sizes, 350 & 400mm).

Main features:
* hand-figured Ritchey - Chretien optics
* precision adjustment of primary & secondary mirror
* portable, medium size reflector telescope
* truss type chassis design for quick cool down
* carbon fibre and aluminium alloy high quality construction.

Specifications & technical data:
Clear aperture – 400 mm; Focal ratio – F/8; Focal length – 3200 mm; Central Obstruction – 50%, linear
Primary substrate – Supremax33, Fused Silica/Quartz or Cellular
Secondary substrate – Fused Silica/Quartz
Primary mirror cage material – Carbon Fiber
Truss tubes material – Carbon Fiber.

Dimensions:
1150 x 525 x 560 mm (L x W x H; considers handle, dovetail & focuser added height/length)
Weight : ~35 kg
Usable back-focus : ~275 mm, from back-plate
Usable back-focus :  88.8 mm, from corrector.
